Customized according to specific customer requirements

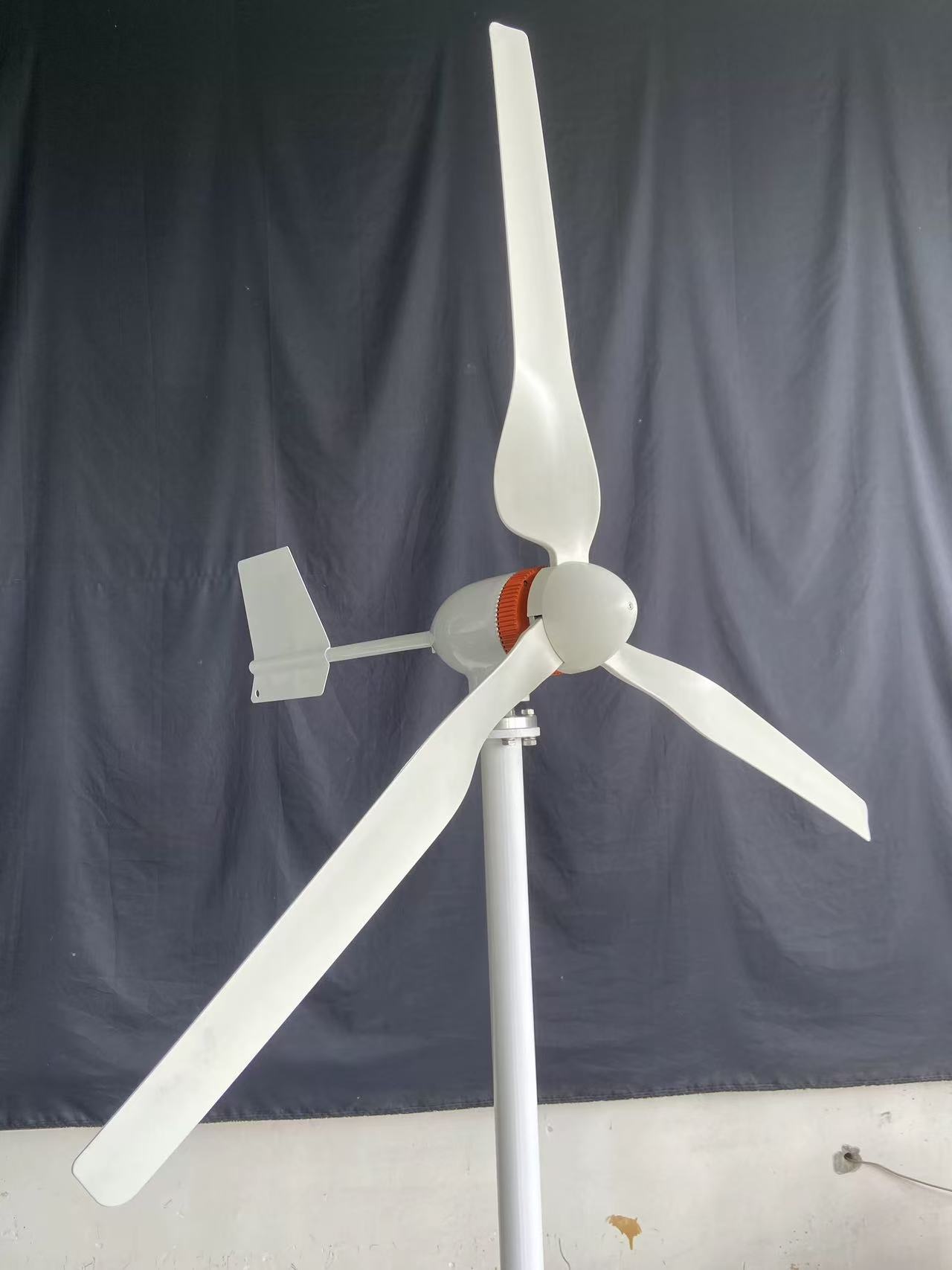

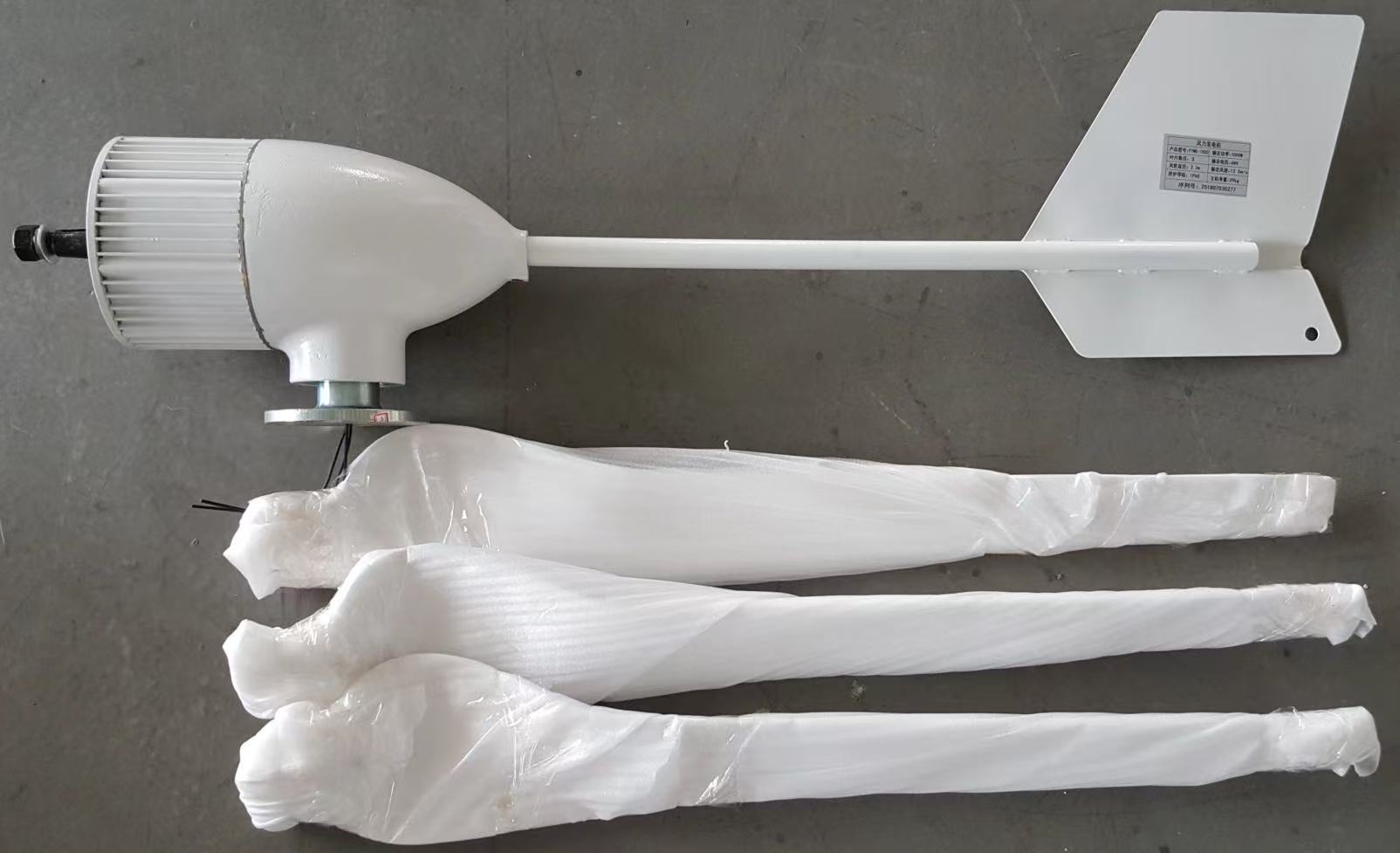

1.Utilizes direct-drive permanent magnet generator, upwind orientation, automatic wind direction adjustment, and without gearbox transmission design. The whole machine has low starting wind speed, small size, lightweight, pleasing appearance, and low operating vibration.
2.Equipped with multiple safety protections such as electromagnetic brake and automatic adjustment of wind angle, ensuring safe and stable operation of the wind turbine in extreme weather conditions based on real-time monitoring data.
| Model | 500M | 600M | 800M | 1000M | 2000M |
| Rated power | 500W | 600W | 800W | 1000W | 2000W |
| Maximum power | 520W | 620W | 850W | 1150W | 2200W |
| Rated voltage | 24V/48V | 24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated wind speed | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s |
| Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
| Top net weight | 17kg | 19kg | 31 | 31.5kg | 31.5kg |
| Wheel diameter | 1.7m | 1.8m | 1.95m | 2.05m | 2.45m |
| Blades material | 3 pcs Nylon Fiber | ||||
| Generator type | Three phase permanent magnet AC synchronous generator | ||||
| Magnet material | Rare Earth NdFeB | ||||
| Generator case | Casting Aluminum Alloy | ||||
| Control system | Electromagnet/wind wheel sideways | ||||
| Working temperature | -40℃~ - 80℃ | ||||
| Design life | 20 years | ||||
