vertical axis wind turbine

Customized according to specific customer requirements

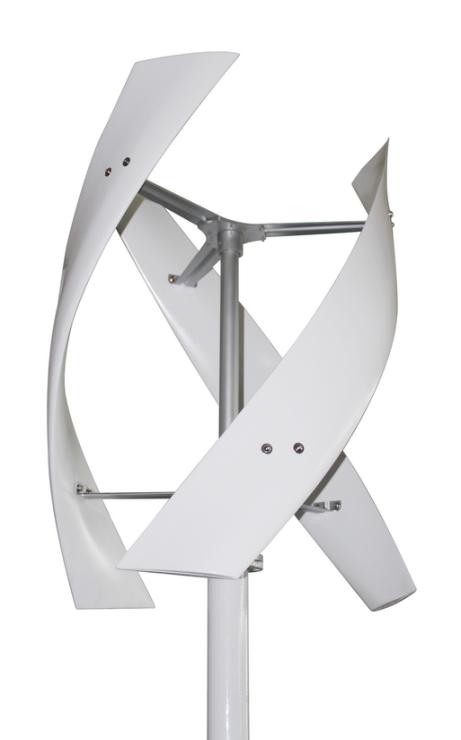

X type wind turbine

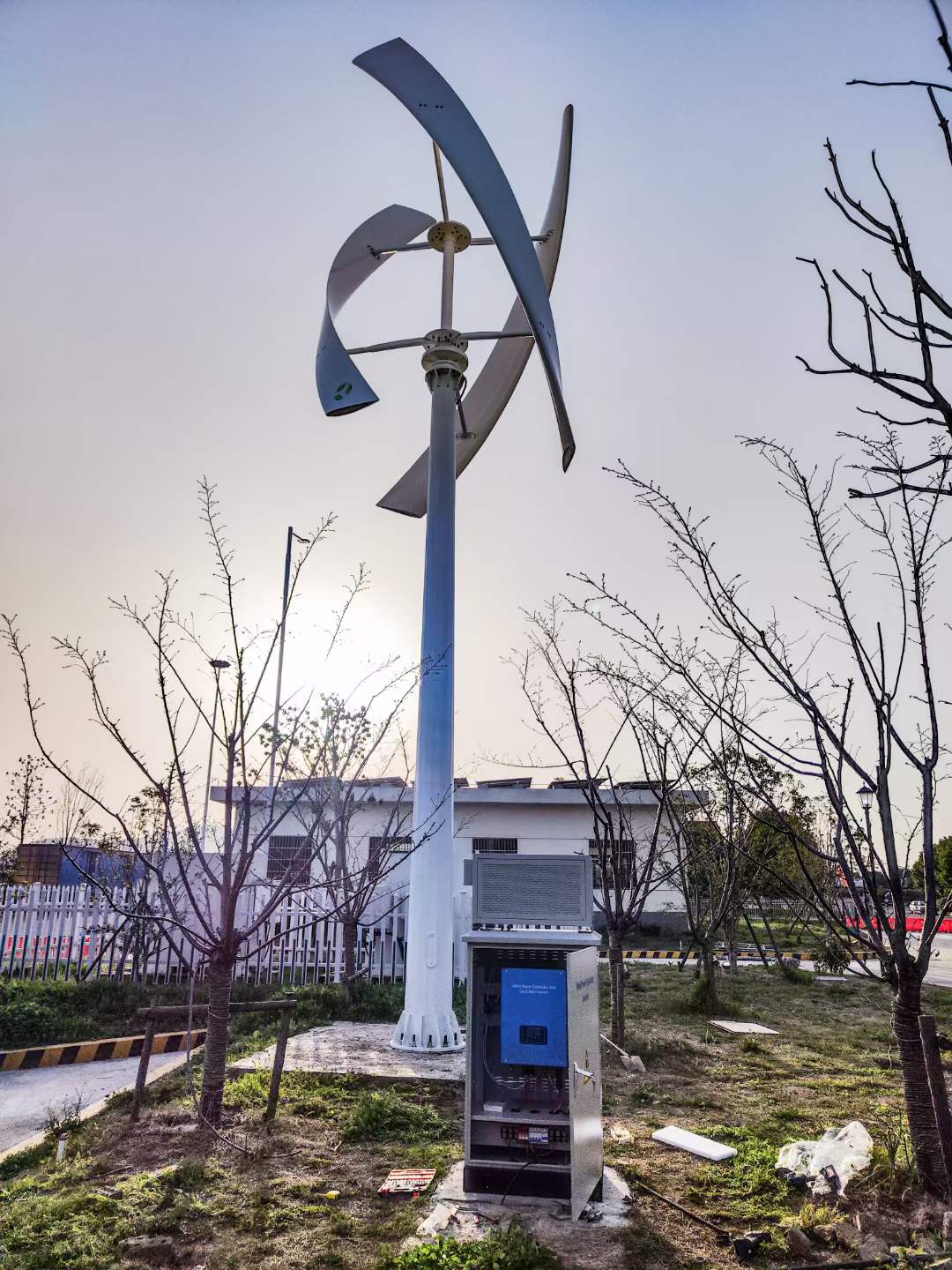

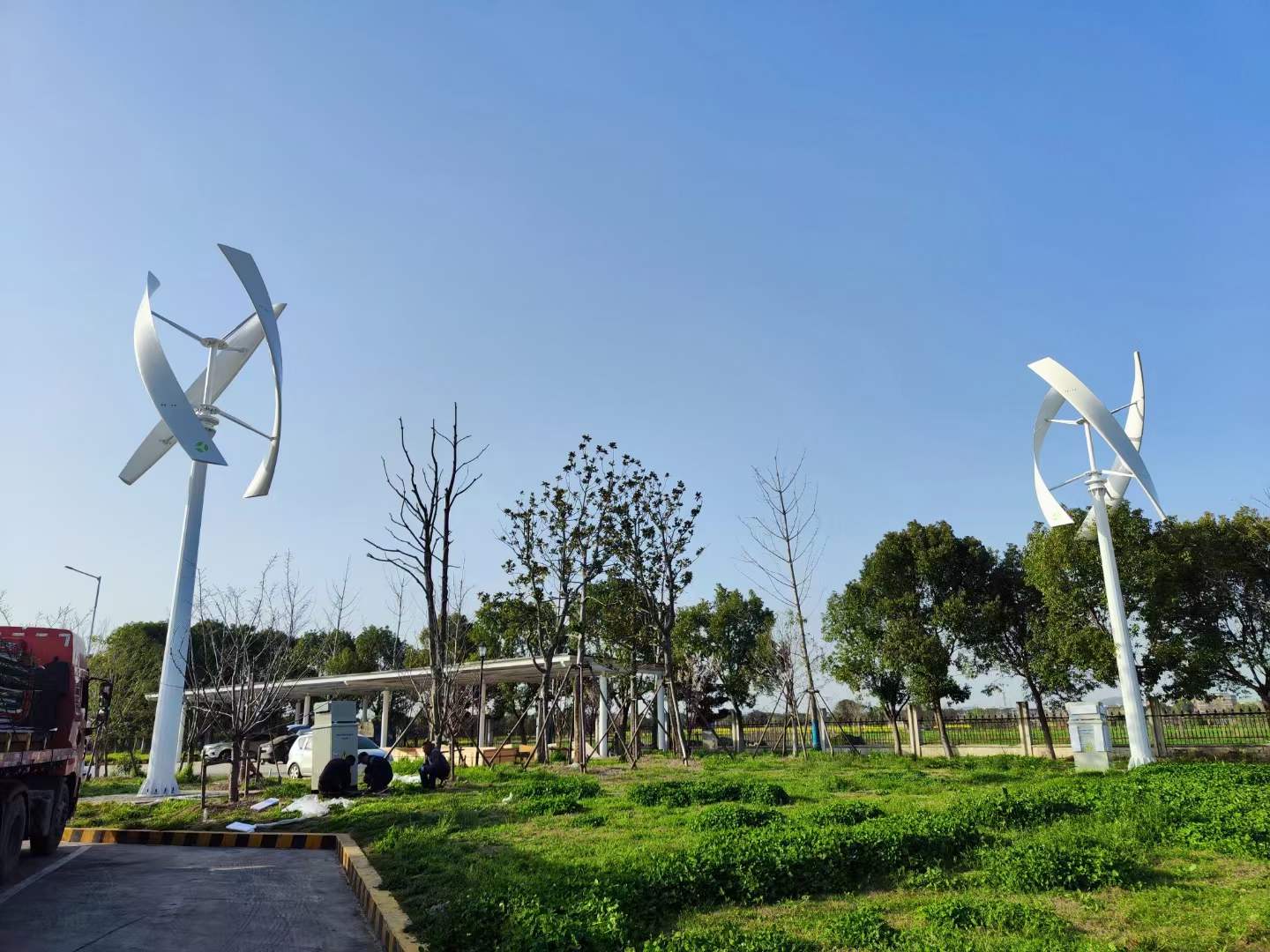

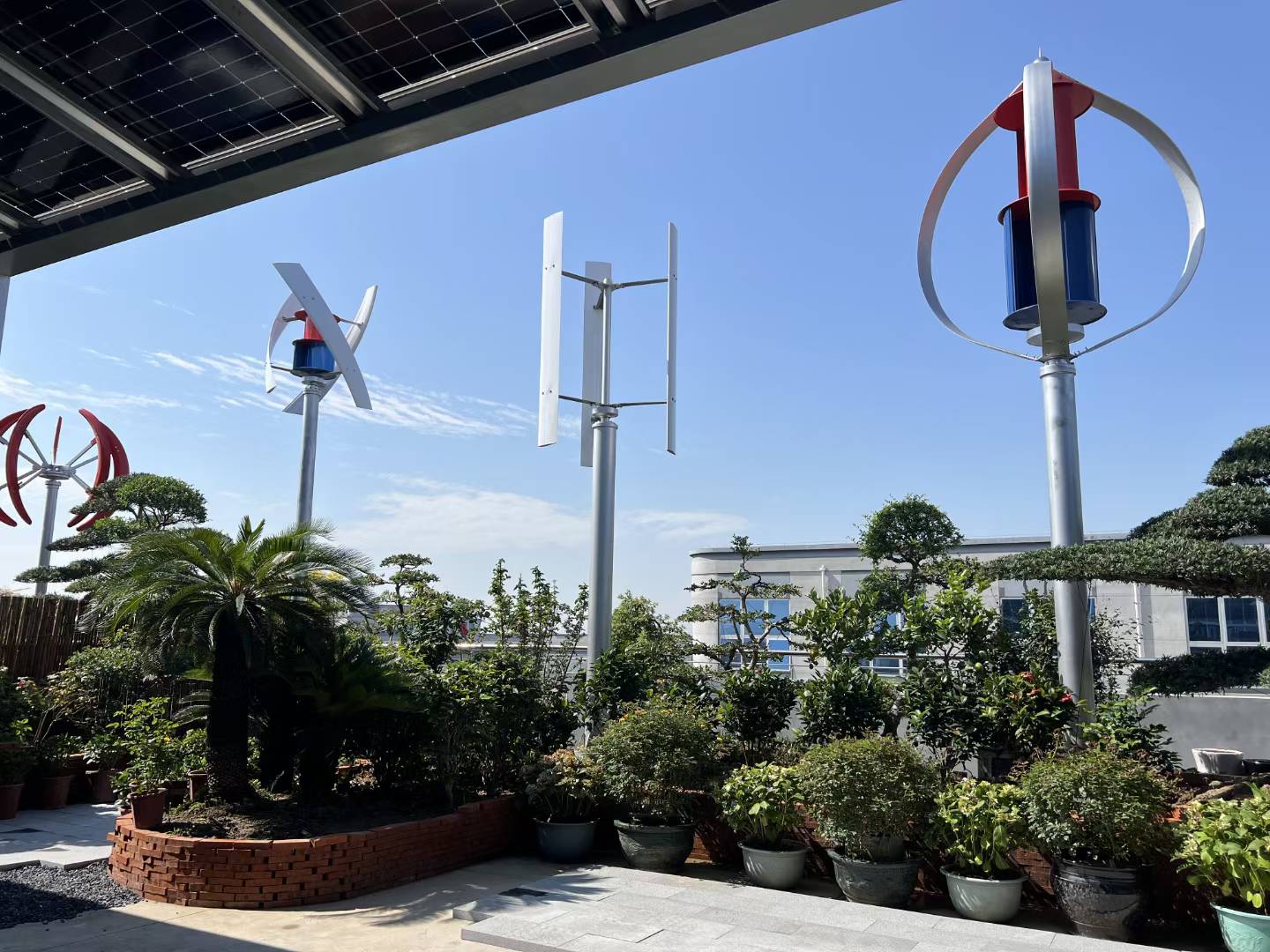

Our company's products are widely used in wind-solar hybrid street lights, yacht power supply systems, suburban villas, farms, schools, portable mobile tents, communication stations, and more. They have received unanimous praise from customers both domestically and internationally. They are ideal power supply systems for dispersed households, outposts, meteorological stations, communication base stations, highways, surveillance systems, scenic areas, etc. They not only make full use of natural resources but also enhance the beauty of the natural landscape.
Product Features

1.No need for wind alignment, reducing gyroscopic forces when the rotor aligns with the wind, resulting in an aesthetically pleasing appearance and minimal operational vibration.

2.Can be equipped with assisting wind wheels to achieve start-up and power generation in light winds, maximizing the utilization of wind resources and increasing annual power generation, thus enhancing equipment's economic efficiency.

3.Equipped with multiple safety protections such as electromagnetic brakes, enabling automatic omnidirectional wind tracking, stronger typhoon resistance, and ensuring safe and reliable operation.

4.The wind turbine blades are precision-manufactured using advanced technology, combined with optimized aerodynamic shape and structural design, facilitating easy installation and achieving high wind energy utilization coefficient.

5.Utilizes professional magnetic circuit design, resulting in low motor startup torque, reduced startup wind speed, and increased wind energy utilization efficiency.

6.Offers rich customization options, supporting customization of blade colors and logos.

7.Suitable for applications in street lighting, road monitoring, scenic islands, and scenic area projects.

Technical Specifications
ModelX3X5X7X9
Rated power200W300W500W600W800W1000W2000W
Max. Power200W300W500W600W800W1000W2000W
Rated wind speed11.5m/s
Rated voltage12V/24V48/96V/120V 120V/220V
Start-up wind speed 2m/s
Wind wheel diameter0.53m0.62m0.8m0.9m1.67m
Blade height0.75m0.9m1.5m1.65m2.8m
Safety wind speed45m/s
Controller systemElectromagnetism
GeneratorThree phase ac permanent magnet generator/Three phase maglev generator
Connection typeflange connection
Blade materialReinforced Aluminium alloy
Working temperature-40℃-70℃
Design life25 Years
Cut in speed≤3.5m/s
Tower spec6m 9m or customized
Insolation gradeF
IP gradeIP54
