LIFEPO4 Battery

Customized according to specific customer requirements

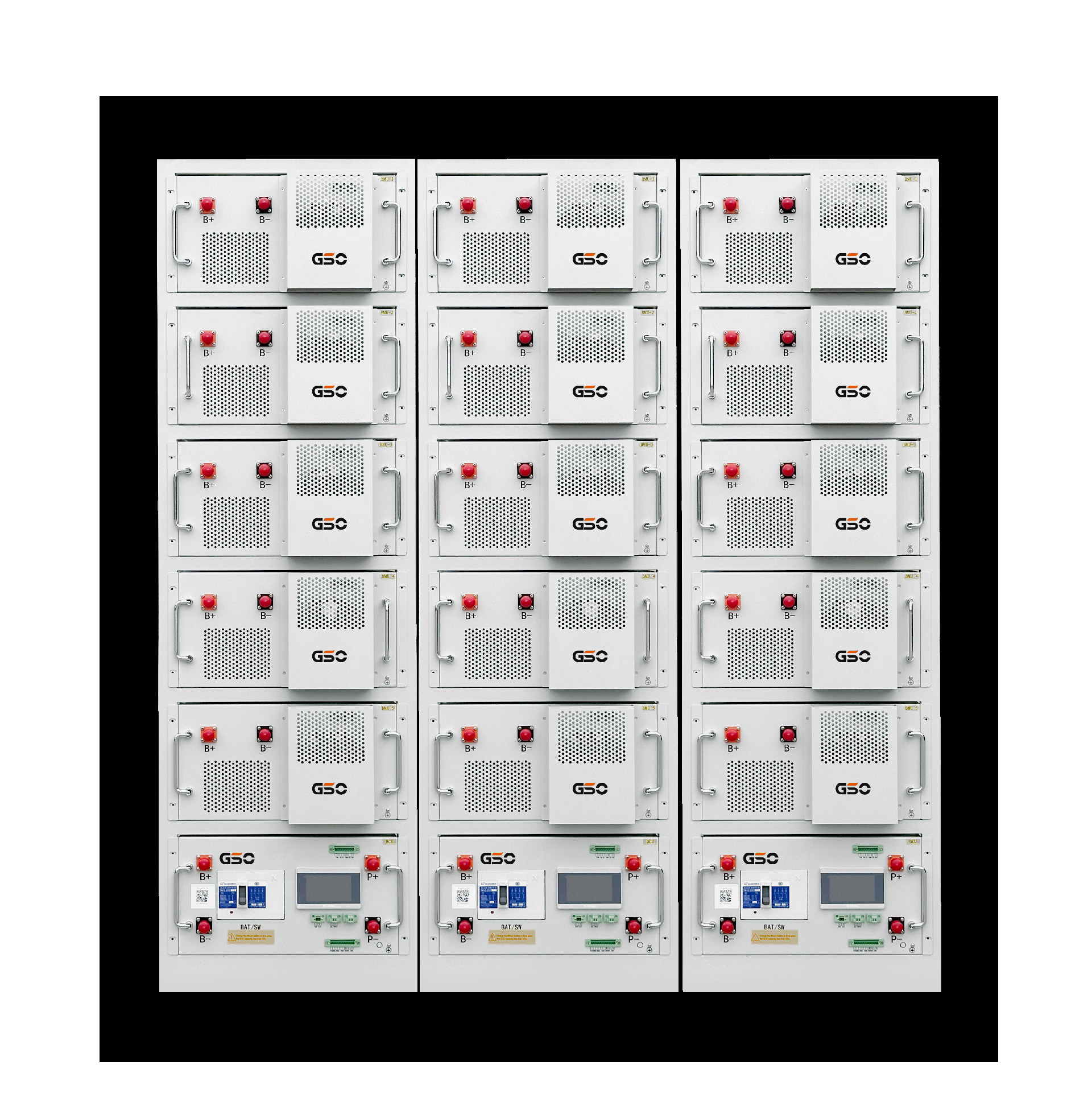

GBP-H2 Series High-Voltage Lithium Battery Cluster Energy Storage System

The GBP-H2 Series is a high-voltage, large-capacity lithium battery cluster system designed for commercial and industrial energy storage projects. It is suitable for emergency backup power, peak shaving and valley filling, renewable energy storage, and power supply in remote areas, islands, mountainous regions and weak-grid locations.

Built with lithium iron phosphate cells and a customized BMS, the system provides stable performance, long cycle life and reliable safety management. Multiple communication interfaces and protocol options allow the battery system to work with mainstream inverters, wind power controllers, chargers and hybrid energy systems.

Product Features
  • Modular battery-cluster design for flexible system configuration.
  • Automatic ID recognition for easier installation, commissioning and maintenance.
  • Independent display screen for each cluster to show operating status and alarm information.
  • Supports TCP/IP, CAN, RS485, dry contact and wet contact communication.
  • Compatible with mainstream inverters, wind power controllers and chargers.
  • Optional remote DTU for online monitoring and remote upgrade.
  • Long cycle life: >=5000 cycles under 25 deg C, 80% DOD working conditions.
Technical Specifications
100Ah / 200Ah Configuration Range
ModelNominal VoltageOperating Voltage Range
GBP96-100/20096 V90-106.5 V
GBP192-100/200192 V180-213 V
GBP220-100/200220.8 / 224 V207-245 V
GBP288-100/200288 V270-319.5 V
GBP360-100/200358.4 V336-400 V
GBP384-100/200384 V360-426 V
GBP480-100/200480 V450-532 V
280Ah / 314Ah Configuration Range
ModelNominal VoltageOperating Voltage Range
GBP384-280/314384 V360-426 V
GBP460-280/314460.8 V432-511 V
GBP538-280/314537.6 V504-596 V
GBP576-280/314576 V540-639 V
GBP652-280/314652.8 V612-724 V
GBP692-280/314691.2 V648-767 V
GBP768-280/314768 V720-852 V
General Parameters
ItemSpecification
Battery typeLithium iron phosphate cell
Charging temperature0-55 deg C
Discharging temperature-10-55 deg C
Protection levelIP20
Reference size684 x 510 x 245 mm
Cycle life>=5000 cycles, 25 deg C, 80% DOD
CustomizationSpecial voltage and capacity configurations are available on request
Typical Applications
  • Commercial and industrial energy storage
  • Solar and wind energy storage systems
  • Peak shaving and valley filling
  • Emergency backup power
  • Remote areas, island power supply and weak-grid projects
  • Hybrid renewable energy systems
Project Selection Support

Send us your inverter brand, required DC voltage range, capacity target, installation environment and destination country. BESSENT can help recommend a suitable configuration and provide technical matching support.
