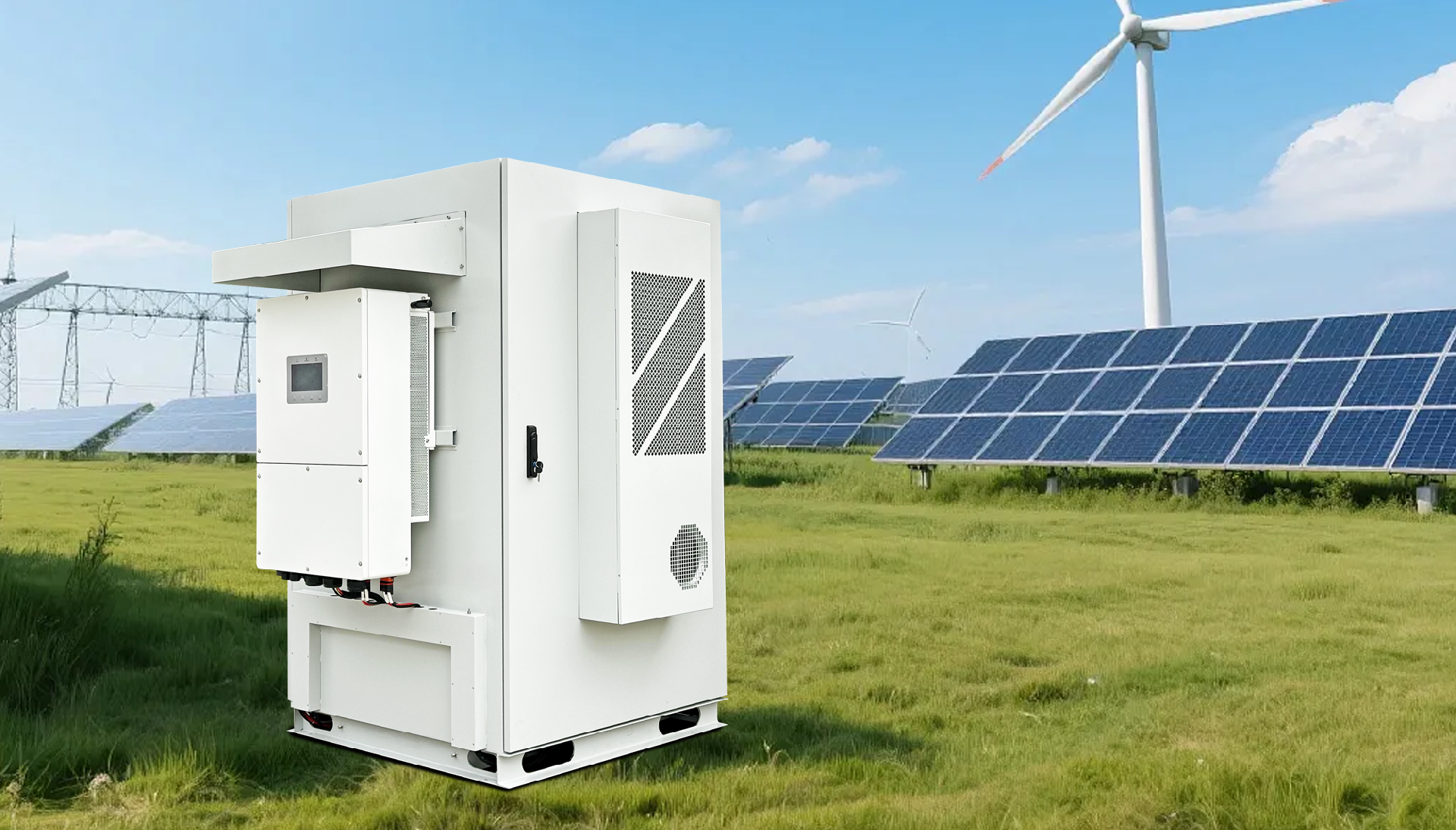

GSS-PC Series Outdoor Lithium Battery Cabinet

The GSS-PC Series outdoor battery cabinet is designed for safe, reliable and flexible commercial and industrial energy storage deployment. With modular battery packs, intelligent management and outdoor protection, it provides a practical solution for solar energy storage, backup power, peak shaving and hybrid power systems.

The cabinet supports different capacity configurations from 4 packs to 15 packs, and can adapt to various hybrid inverter brands. It is suitable for both single-branch and two-branch inverter system designs.

Product Features
  • Outdoor independent installation without occupying indoor space.
  • Modular and scalable design from 4 battery packs to 15 battery packs.
  • Waterproof, dustproof, sun-proof and corrosion-resistant cabinet design.
  • Fire protection options including aerosol or perfluoroketone systems.
  • DC overcurrent, short-circuit, overvoltage and over-temperature protection.
  • Flexible connection with solar panels, inverters and hybrid power equipment.
  • Industrial air-conditioning cooling for stable outdoor operation.
Technical Specifications
ModelCompositionRated VoltageRated EnergyOperating VoltageWeight
GSS-PC44 packs204.8 V64.3 kWh192-227.2 V0.9 t
GSS-PC55 packs256 V80.4 kWh240-284 V1.0 t
GSS-PC66 packs307.2 V96.5 kWh288-340.8 V1.1 t
GSS-PC77 packs358.4 V112.5 kWh336-397.6 V1.5 t
GSS-PC88 packs409.6 V128.6 kWh384-454.4 V1.7 t
GSS-PC99 packs460.8 V144.7 kWh432-511.2 V1.8 t
GSS-PC1010 packs512 V160.8 kWh480-568 V2.0 t
GSS-PC1111 packs563.2 V176.8 kWh528-624.8 V2.1 t
GSS-PC1212 packs614.4 V192.9 kWh576-681.6 V2.3 t
GSS-PC1313 packs665.6 V209.0 kWh624-738.4 V2.4 t
GSS-PC1414 packs716.8 V225.1 kWh672-795.2 V2.5 t
GSS-PC1515 packs768 V241 kWh720-852 V2.6 t
Cell and Pack Parameters
ItemSpecification
Cell typeLithium iron phosphate cell
Cell specification3.2 V 314 Ah
Pack combination16S1P
Pack rated voltage51.2 V
Pack operating voltage48-56.8 V
Pack rated energy16 kWh
Standard charge/discharge power0.5P
Maximum charge/discharge rate0.5P
Protection classIP54; key components IP65
Cooling methodIndustrial air conditioning
Fire-fighting systemAerosol / perfluoroketone optional
Ambient temperature-20-50 deg C; derating required above 45 deg C
Typical Applications
  • Commercial and industrial energy storage
  • Solar and wind energy storage systems
  • Peak shaving and valley filling
  • Emergency backup power
  • Remote areas, island power supply and weak-grid projects
  • Hybrid renewable energy systems
Project Selection Support

Send us your inverter brand, required DC voltage range, capacity target, installation environment and destination country. BESSENT can help recommend a suitable configuration and provide technical matching support.
