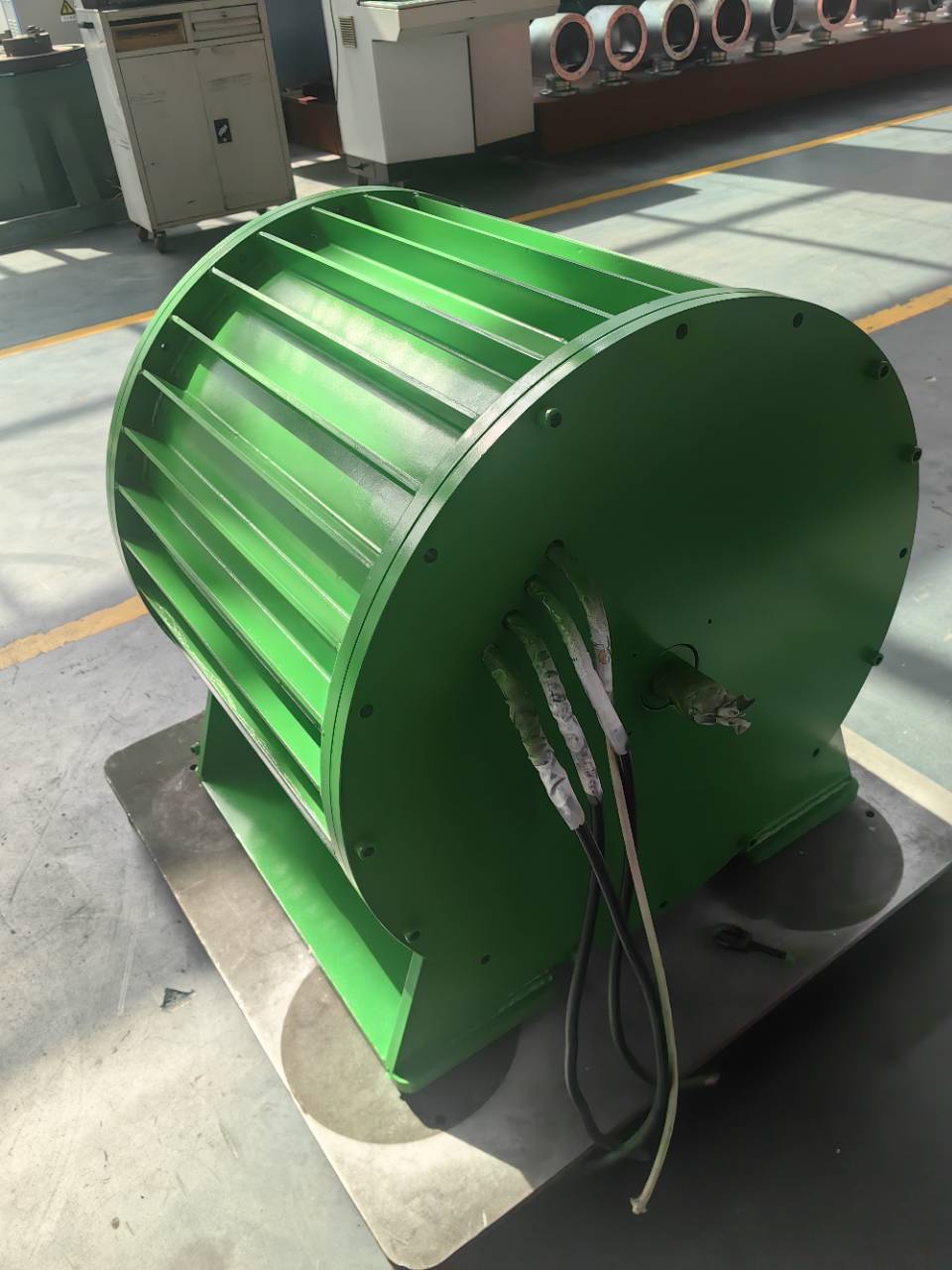

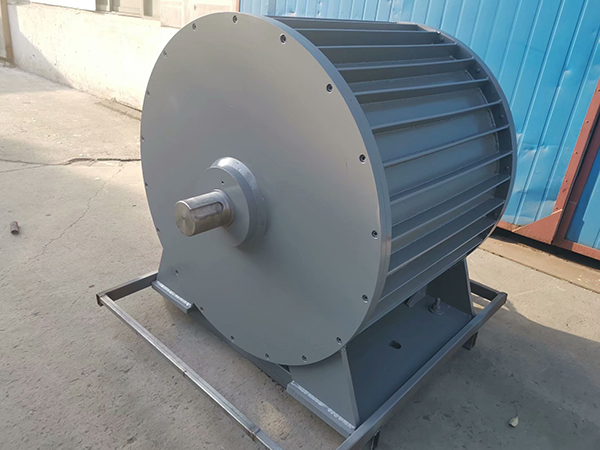

The characteristics of permanent magnet generators: Using rare earth permanent magnetic materials (such as neodymium iron boron), no excitation current is required. The structure is simpler. By adjusting the three-phase current, the stator magnetic field and the rotor magnetic field rotate synchronously, with an efficiency of up to 92%-96%. They are suitable for scenarios such as wind power generation and high-speed power generation in aviation, and are particularly suitable for fields with high efficiency requirements.
Product Features
The characteristics of permanent magnet generators: Using rare earth permanent magnetic materials (such as neodymium iron boron), no excitation current is required. The structure is simpler. By adjusting the three-phase current, the stator magnetic field and the rotor magnetic field rotate synchronously, with an efficiency of up to 92%-96%. They are suitable for scenarios such as wind power generation and high-speed power generation in aviation, and are particularly suitable for fields with high efficiency requirements.
Technical Specifications
型号 Model | S-100 | S-200 | M -300 | M -400 | M2-500 | M2-600 | ||
额定功率 Rated power | 100w | 200w | 300w | 400w | 500w | 600w | ||
额定电压 Rated voltage | 12v/24v/48v | |||||||
额定转速/频率 Rated speed/hz | 750rpm/75hz | 800rpm/80hz | 500rpm/50hz | |||||
发电机直径 Generator diameter | 153mm | 185mm | ||||||
发电机长度 Generator length | 65mm | 75mm | 85mm | |||||
主轴直径 Shaft diameter | 17mm/M16*1.5 | 20mm/M20*2.5 | ||||||
主轴长度 Shaft length | 27mm | 51mm | ||||||
发电机类型 Generator type | 稀土永磁三相交流发电机/ Rare earth permanent magnet three -phase alternator | |||||||
额定扭矩 Rated torque | 1.3N*m | 2.6N*m | 3.82N*m | 5.1N*m | 9.55N*m | 11.46N*m | ||
极数 The number of |
poles | 8 | 12 | |||||
转换效率 Conversion |
efficiency | ≥90% | ||||||
绝缘等级 Insulation class | F | |||||||
磁钢材料 Magnetic steel material | 稀土钕铁硼/Rare earth neodymium NdFeB | |||||||
工作温升 Temperature rises | ＜70℃ | |||||||
工作温度 Operating temperature | -40℃ -120℃ | |||||||
润滑方式 Lubrication method | 加注润滑脂/Grease is added | |||||||
使用寿命 Service life | ≥25 years | |||||||
